Standby Battery Charger

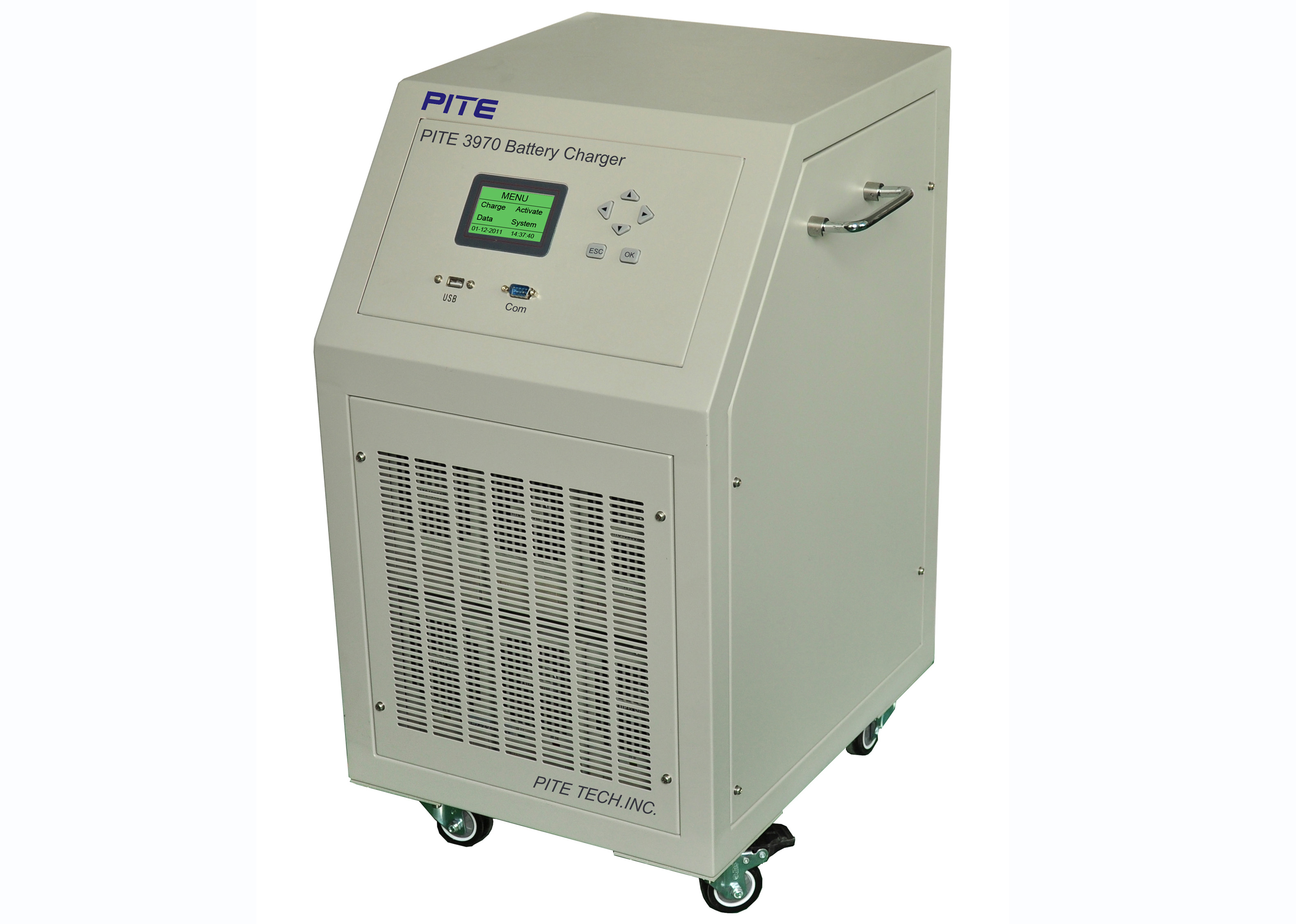

PITE-3970 智能便携式充电机
This machine adopts the new power consumption components, patented technology manufacturing, to achieve constant voltage charging, are charge, function; large-screen LCD display, Chinese / English menu prompts, easy to operate, high degree of intelligence can be set and control voltage, Time, capacity and other parameters, automatically complete the battery of various parameters of the test, monitoring. After the completion of charging, the data will be transferred to the U disk; supporting data processing software on the charge / charge collection of data information for processing, to provide a scientific basis for the analysis of battery performance.- Design features
- Product function
- Technical parameter
● High output power with light weight, convenient for field measurement transportation • User friendly artwork, easy access to all components by operators
● State-of-art technique of soft-off which decreased switch deterioration by 40% • Strong to provide DC auxiliary supply during emergencies for protection and control equipments in case of DC system failure • Comply with requirements as in IEC 60146-1-1
● Ventilation channel and circuit with dustproof structure
● Accurate display for output voltage, current and other working status on LCD screen • Build-in CPU, automated management for battery charging
● Auto calculation for changed time and changed capacity
● Auto transforming from equalized charging to float charge
● This switch model charger could be combined with extra units for higher output power
● Could be used as backup power in case of DC charge malfunction
● Versatile configuration for different applications in battery maintenance
● This battery deep cycle charger has Over-voltage protection and under voltage
● State-of-art technique of soft-off which decreased switch deterioration by 40% • Strong to provide DC auxiliary supply during emergencies for protection and control equipments in case of DC system failure • Comply with requirements as in IEC 60146-1-1
● Ventilation channel and circuit with dustproof structure
● Accurate display for output voltage, current and other working status on LCD screen • Build-in CPU, automated management for battery charging
● Auto calculation for changed time and changed capacity
● Auto transforming from equalized charging to float charge
● This switch model charger could be combined with extra units for higher output power
● Could be used as backup power in case of DC charge malfunction
● Versatile configuration for different applications in battery maintenance
● This battery deep cycle charger has Over-voltage protection and under voltage
● Could be used as DC power supply in maintenance and examination of power project
● DC power supply for relay protection equipment in experiment and adjustment
● Could be used as DC power supply in maintenance and examination of power project
● Thermal protection, auto stop in overheating and auto start in normal temperature
● No reverse current from the battery or load feeding the charger
● DC power supply for relay protection equipment in experiment and adjustment
● Could be used as DC power supply in maintenance and examination of power project
● Thermal protection, auto stop in overheating and auto start in normal temperature
● No reverse current from the battery or load feeding the charger
Temperature: -10℃ ~ 40℃ (working)
-25℃ ~ 55℃ (storage)
• Altitude: <2000 M
• Humility: <95% (daily), <90% (monthly)
• Input volt: sinusoidal wave, -15%nom~20％nom
• Reliability: MTBF≥100000
• Noise: ≤55dB
• Input Hz: 45Hz~55Hz
| Output Range |
Index
|
|
|
P1140
|
P2240
|
|
| Output nom voltage |
110V
|
220V
|
| Voltage range |
90V～143 V
|
176-288V
|
| Output nom current |
40A
|
40A
|
| Current limit |
0～105% nom output current
|
|
| Volt-stabilization accuracy |
±0.2%
|
|
| Current-stabilization accuracy |
±0.2%
|
|
| Ripple coefficient |
±0.05（rms）, ±0.2%（peak）
|
|
| Soft start time |
3~8s
|
|
| Charger Input |
Range
|
| Input voltage |
380V(-15%, +20%), 3p
|
| Input Frequency |
50Hz±10%
|
| Input current |
25A
|
| Power factor |
0.93 (Full load)
|
| Overall efficiency |
93% (Full load)
|
Ordering Info
|
Model |
Output |
Dimension |
Weight |
|
P2240 |
220V, 40A |
590×397×131mm |
29.5 Kg |
|
P1140 |
110V, 40A |
590×397×131mm |
29.5 Kg |
